β‘ Key Fact Summary (Direct Answer & Key Specs)
Bambu Lab Compatible PTFE Bowden Tube for 1.75 mm Filament, 2.5 mm ID x 4 mm OD, 4/8 m – Specifications and Review –
Based on thousands of orders on AliExpress
π¦ Specifications & Details

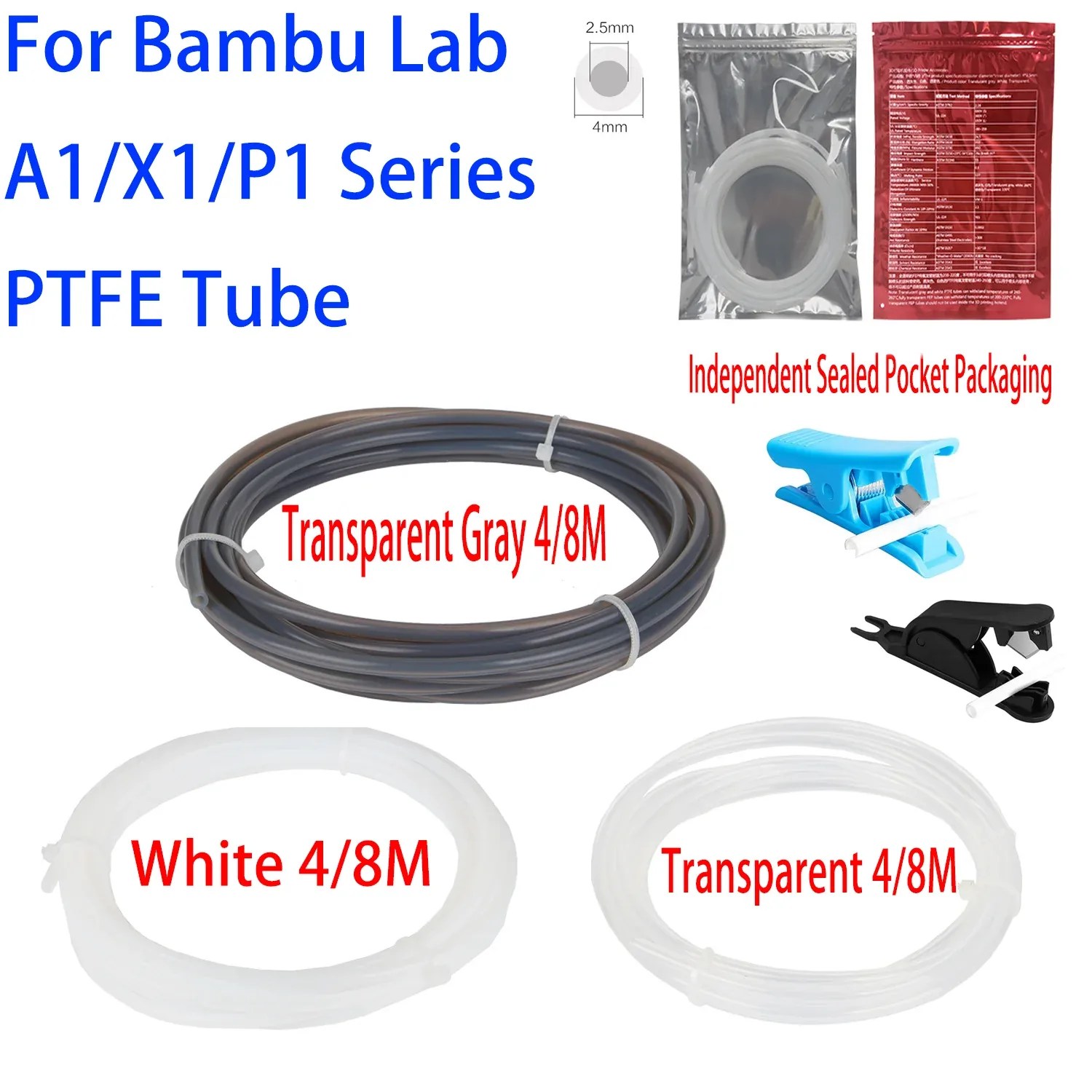

This PTFE Bowden tube guides 1.75 mm filament between a spool, AMS system, external guide, or feed mechanism and the extruder of a compatible Bambu Lab 3D printer. The tube uses a 2.5 mm internal diameter and 4 mm external diameter to provide free filament travel and compatibility with common 4 mm fittings. The 4 m and 8 m length options support replacement of multiple sections or creation of a custom filament route.
A practical consumable for replacing and customizing 4 mm PTFE filament paths when a specific 1.75 mm setup requires a 2.5 mm internal bore.
PTFE tubing is a critical mechanical component in filament delivery systems because it affects friction, bend radius, and path stability before the extruder. This format is intended for 1.75 mm filament and is specified with a 2.5 mm internal diameter and 4 mm external diameter, a common size for pneumatic push-fit connectors used in desktop 3D printing. The product is offered in nominal 4 m and 8 m coils, making it suitable for both service replacement and longer external routing projects. PTFE, also called polytetrafluoroethylene, is valued for low surface friction and strong chemical resistance. Actual suitability for a specific Bambu Lab model depends on the installed fittings, route length, AMS components, and filament type.
βοΈ Technical Specifications
| Model | 1005012277286164 |
| Product type | PTFE Bowden filament guide tube |
| Intended use | Guide path for 1.75 mm 3D printer filament |
| Material | PTFE, polytetrafluoroethylene, according to the product designation |
| Internal diameter | 2.5 mm |
| External diameter | 4.0 mm |
| Wall thickness | Approximately 0.75 mm per side, calculated from the stated diameters |
| Compatible filament diameter | 1.75 mm |
| Radial clearance relative to nominal filament | Approximately 0.375 mm per side |
| Available nominal lengths | 4 m and 8 m |
| Supply form | Flexible coiled tube |
| Nominal fitting standard | 4 mm external diameter, commonly compatible with PC4 class push-fit fittings after verification of the specific fitting |
| Primary compatibility | Bambu Lab 3D printers and filament systems using 4 mm OD tube and accepting a 2.5 mm ID channel |
| Possible applications | AMS routing, external spool holder, filament buffer, pre-extruder guide, service replacement |
| Compatible filament materials | PLA, PETG, ABS, ASA, TPU with suitable route setup, PA, and other 1.75 mm materials |
| Abrasive filament limitation | Carbon fiber, glass fiber, metal-filled, and heavily filled filaments may accelerate wear inside the bore |
| PTFE characteristic | Low coefficient of friction relative to many engineering plastics |
| Base polymer thermal resistance | PTFE itself has high thermal resistance, but finished-product suitability is determined by the manufacturer and should not be treated as a rating for heated zones |
| Electrical and chemical properties | PTFE is electrically insulating and chemically resistant, although these properties are not the primary purpose in this application |
| Installation method | Cut to required length and insert into fittings or factory guide channels |
| Recommended cutting tool | Sharp PTFE cutter or guided blade that produces a square cut |
| Critical installation requirement | The end should remain clean, round, and free from crushing so it does not create a step for the filament |
| Maintenance | Inspect periodically for contamination, sharp kinks, scratches, ovality, and loosening at fittings |
| Guaranteed originality | Cannot be verified from the product title alone |
| Package contents | Must be checked in the specific offer; fittings, cutters, and other accessories should not be assumed to be included without explicit listing details |
π Bambu Lab Compatible PTFE Bowden Tube for 1.75 mm Filament, 2.5 mm ID x 4 mm OD, 4/8 m Review
I view this tube as a functional service material rather than a component that independently improves print quality. Its 4 mm OD is useful for many standard fittings, while 4 m and 8 m coils provide substantial flexibility for repairs and external spool routing. The 2.5 mm internal diameter is sensible where low resistance and easier travel matter more than minimum filament clearance. I would measure the existing tube and check fitting retention before ordering because external diameter alone does not guarantee complete mechanical compatibility. For the best result, I would make short, clean square cuts and avoid tight bend radii.
π Technical Glossary
β’ PTFE: Polytetrafluoroethylene is a fluoropolymer with low surface friction, strong chemical resistance, and widespread use as a filament guide material. In 3D printing, it reduces resistance as filament slides through the path.
β’ Bowden system: A configuration in which filament travels through a tube between the spool or feeder motor and the print head. It separates motor mass from the head, but it requires a smooth and well maintained filament route.
β’ ID and OD: ID means internal diameter and OD means external diameter. In this tube, the 2.5 mm ID defines the free space for filament, while the 4 mm OD defines compatibility with fittings.
β’ Push-fit fitting: A quick-connect mechanical fitting that grips the tube exterior with a toothed collet and sealing element. It must match the external tube diameter precisely.
β’ Feed hysteresis: The difference between feeder movement and the moment when that movement change reaches the nozzle. A longer, more curved, or higher-friction PTFE route increases this effect and can influence retraction control.
π Comparison & Competition
This 2.5 mm ID x 4 mm OD PTFE tube belongs to the universal Bowden guide class for 1.75 mm filament. Compared with tighter 2.0 mm ID options, it provides more movement clearance and easier travel through long or complex routes, but it may provide less lateral guidance. Extrusion performance, bore smoothness, and dimensional consistency are more important than the material name alone.
β’ Rival 1: Capricorn XS Series 1.75 mm PTFE tubing: it commonly uses a tighter approximately 1.9 to 2.0 mm internal bore and targets minimal clearance, while this product uses a 2.5 mm ID for freer filament travel.
β’ Rival 2: Creality 4 mm OD PTFE Bowden tube for 1.75 mm filament: it is often a standard universal replacement with a similar external diameter, but internal diameter, bore finish, and included accessories can vary by series and seller.
π‘ Frequently Asked Questions (FAQ)
β QUESTION: Is this tube suitable for every Bambu Lab 3D printer?
β ANSWER: It should not be treated as a universal direct fit without verification. It is dimensionally relevant to systems using 4 mm external diameter tubing, but route length, fitting type, path geometry, and the construction of the specific AMS or printer should be confirmed before installation.
β QUESTION: What does the 2.5 mm ID x 4 mm OD size mean?
β ANSWER: The internal bore is 2.5 mm, and the 1.75 mm filament travels through that bore. The external diameter is 4 mm, and this is the dimension that must match the opening in a push-fit connector or factory guide.
β QUESTION: Can the tube be cut into shorter sections?
β ANSWER: Yes. The coil is intended to be sized for the particular installation. Each cut should be square, smooth, and free of a pinched end because an angled or crushed end can increase resistance and interfere with filament feeding.
β QUESTION: Is it appropriate for TPU and other flexible filaments?
β ANSWER: It can be used, but flexible filaments are more sensitive to clearance, route length, and sharp bends. The 2.5 mm internal diameter provides comparatively generous clearance, so a short, smooth route and well tuned feed settings are especially important.
β QUESTION: When should a PTFE tube be replaced?
β ANSWER: Replacement is sensible when there is visible wear, internal grooving from abrasive filament, persistent kinking, contamination, loose retention in a fitting, or unexplained increased resistance during manual filament movement. The spool, fittings, buffer, and extruder should also be checked before assigning a feed issue to the tube.
